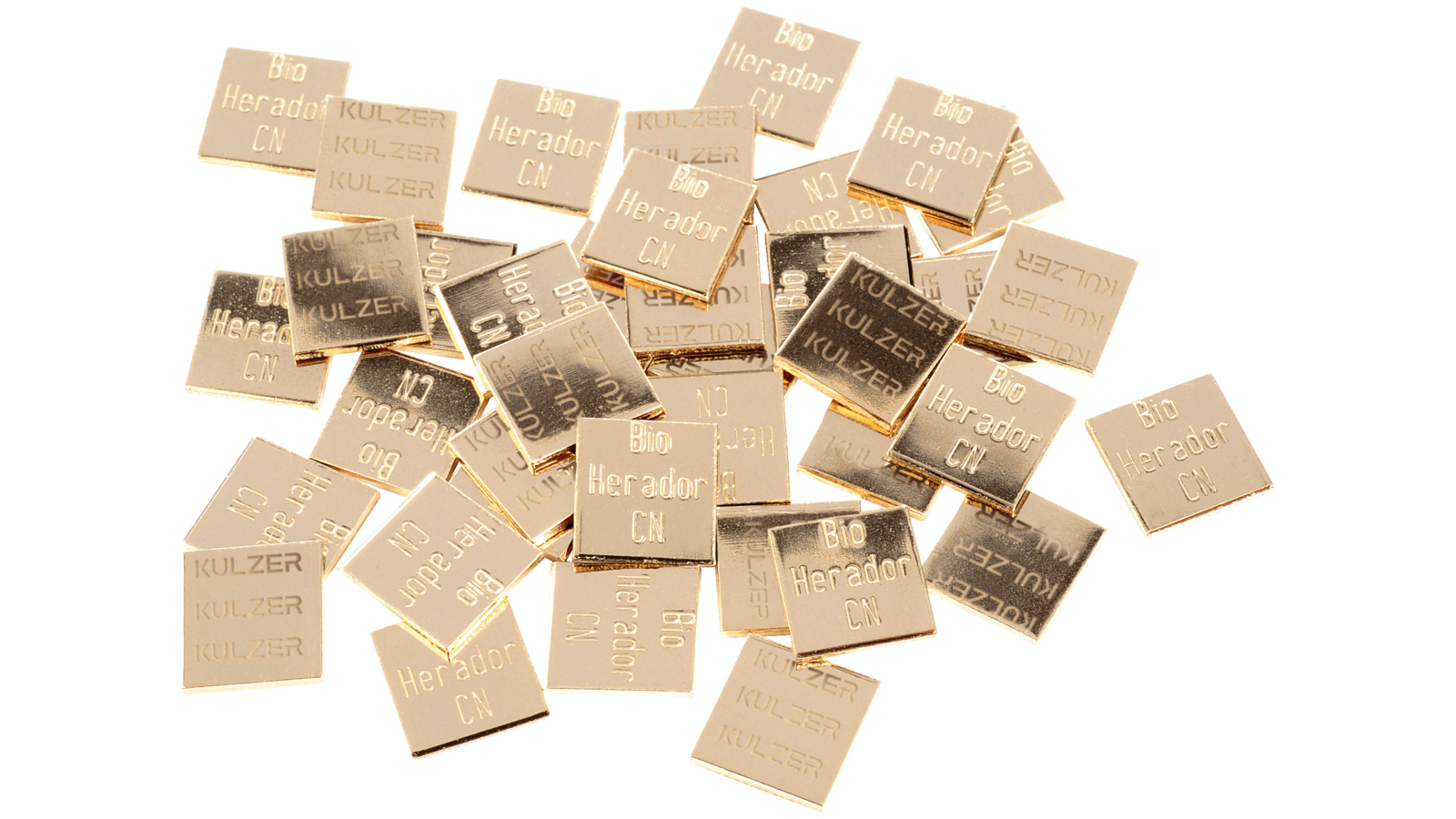

Bio Herador® CN - for C& B
High-gold-content ceramic bonding alloy acc. to EN ISO 9693-1 and 22674, extra-high strength, highly aesthetically veneerable, excellent polishing properties, yellow colour
Benefits
- Gold content 86.6 mass% (precious-metal content 98 mass%
- high corrosion-resistant
- free from Pd, Ag and Cu
- high modulus of elasticity, high strength (type 4)
- easily polished and milled
- aesthetic veneering with HeraCeram
Indications
- Single crowns
- Bridges of any span length
- Implants
- Milling procedures
Specifications
| Composition (Content in mass %) |
Au 86.6 | Pt 10.4 Zn 1.5 | Rh 0.9 Ta 0.2 | In 0.2 Ir 0.1 | Mn 0.1 |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CTE (25 – 500 °C) | 14.5 μm/m*K | |||||||||||||
| Recommended solders |
Herador PF Lot 1040/1010; Herador/Maingold PF Lot 800 |
|||||||||||||
| Laser welding wire |
Bio Herador N Ø 0.3mm / Ø 0.5mm |
|||||||||||||
| Delivery form |
1 g ingots, rand. weights |
|||||||||||||
| Art. Code | 1256 2000 | |||||||||||||
Specification legend
Explanation of abbreviations and numbering:
x = content < 0.1 mass%
Indications:
1 Inlays, cervical filling
2 MOD Inlays
3 Crowns
4 Bridges
5 Milling technique
6 Partial dentures
10 Cast posts
14 Can be veneered with high expansion, low-fusing ceramics
15 Implant restorations
16 Electroformed double crown technique (primary crowns)
Abbreviations:
w = after soft annealing and quenching
k = ceramic bonding alloy: condition after ceramic firing
v = after hardening
s = self-hardening after slow cooling in the mould
A = A stable framework design with reinforced connections with a cross section of 8 - 10 mm² is required for long span bridges and superstructures. Additionally, the frameworks need to be hardened.
B = Depending on the copper content, in some cases discolouration ofdouble crowns may result after short period of wearing. Discolouration, however, is technically and physiologically harmless.
C = In exceptional cases these alloys can also be used for traditional telescopic crowns with parallel walls and for the bar casting technique provided that cross-sections for crown walls, approximal areas, bars and laser welded joints are particularly thick and the alloy is hardened subsequently. No indication for conical crowns and sheardistributors.
Please observe instructions for use included during delivery when processing of the alloy!
