Translux® 2Wave
Made to perform.

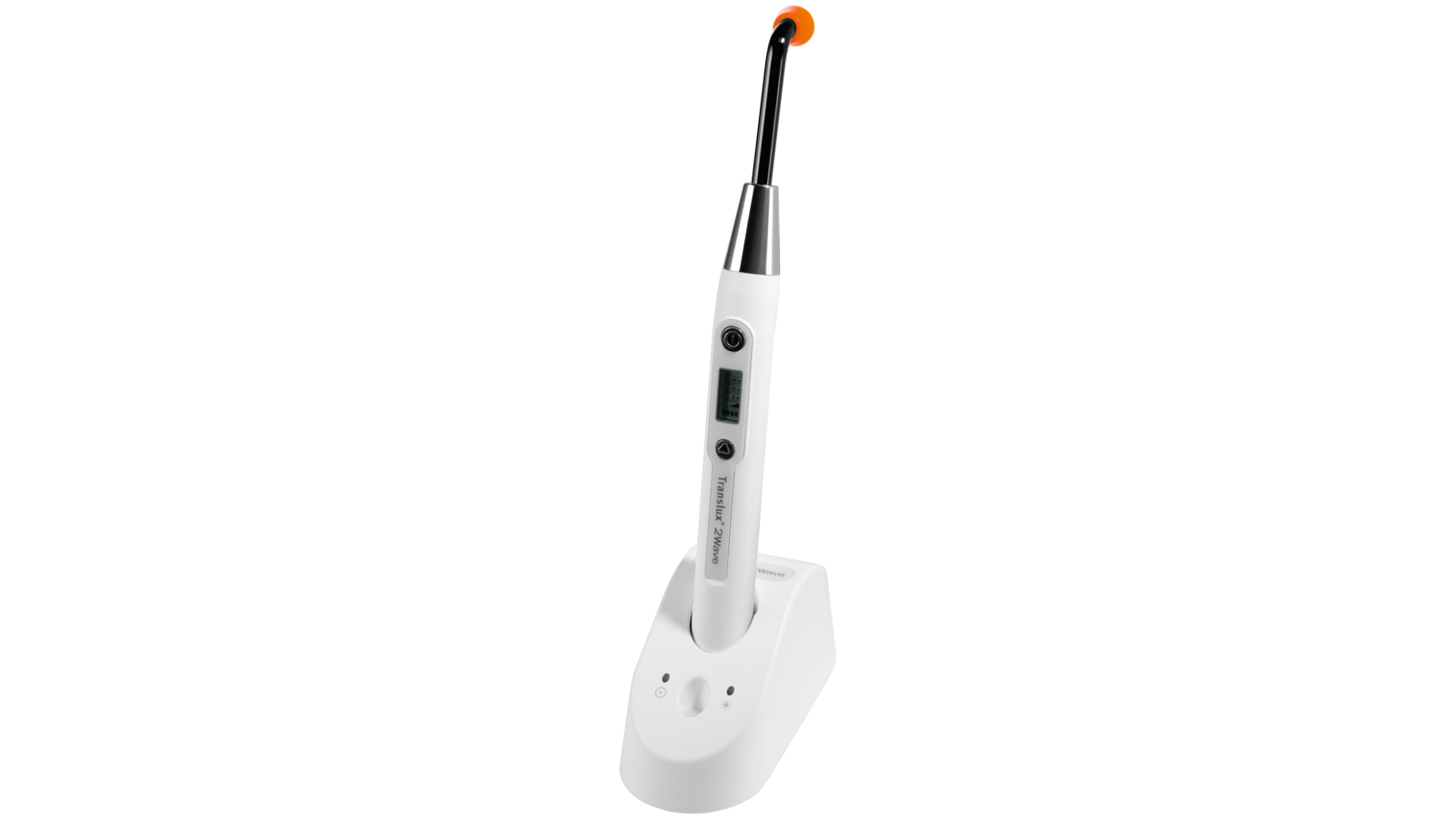

Translux 2Wave, the light-weight cordless LED curing light with a 360° rotatable light beam, offers maximum freedom of movement and technical novelties. We developed its features to perform for your benefit:
Benefits
Easy, convenient handling and reliable performance.
- Maximum freedom of movement and minimized hand fatigue thanks to the light weight of only 150 g and the cordless pen-style design.
- The light guide, having a high angle of 70° and being 360° rotatable, makes the molar region easily accessible.
- Due to the LED display and simple controls handling becomes intuitive.
- The scratch-resistant surface is quickly and easily disinfected.
- The built-in radiometer enables you to check the performance of the curing light.
- The Translux 2Wave has strong, long-lasting Li-ion batteries that need only very little time for recharging.
Good to know
Applications
For your freedom of choice:

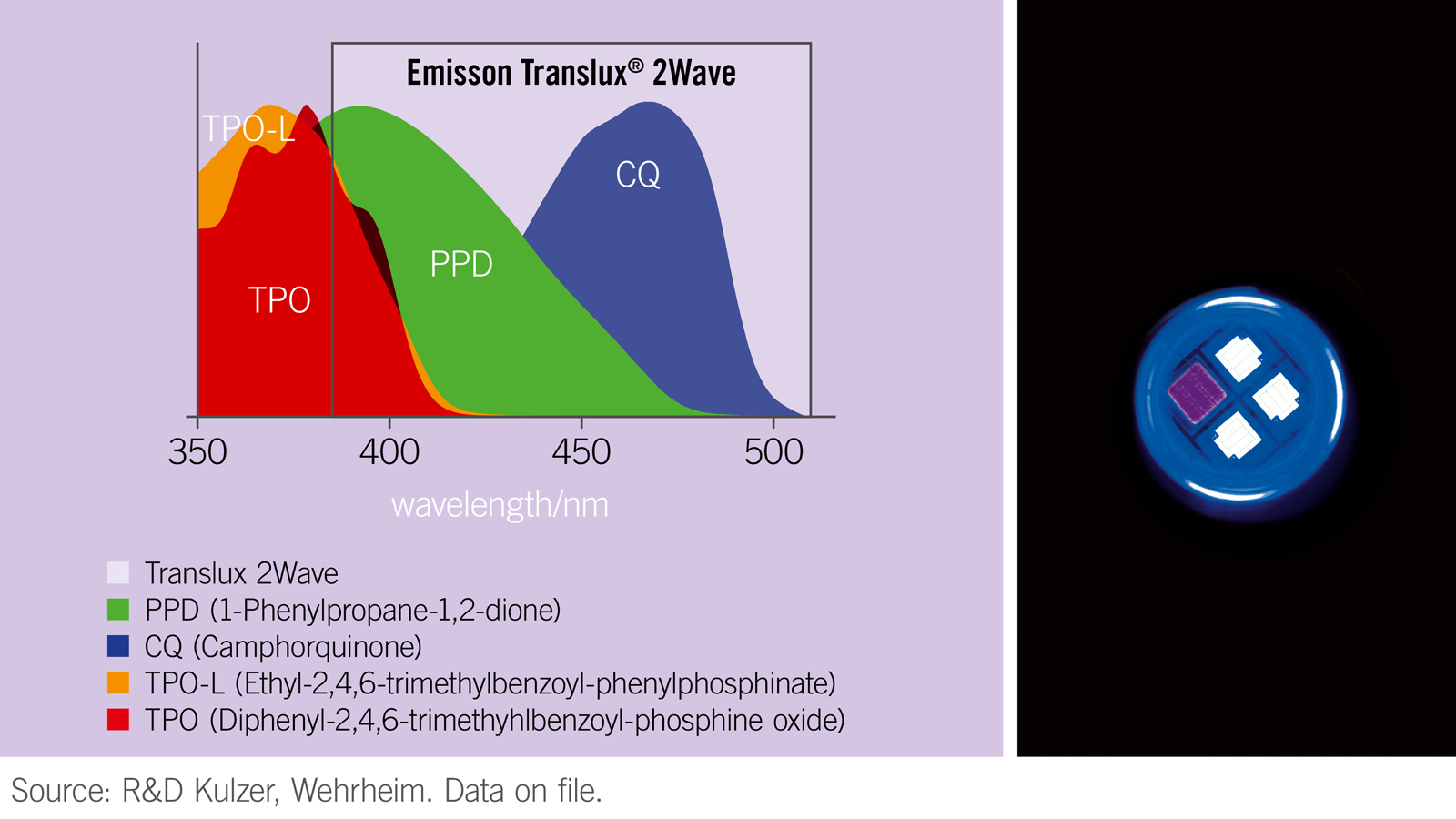

With its broad spectral output and two peaks the Translux 2Wave covers different types of photo initiators. The first wavelength of 385 – 425 nm is for innovative photo initiators that will be more and more used in dental products in the near future. The second wavelength of 430 – 510 nm is for all common camphorquinone based dental materials.
For your efficiency:

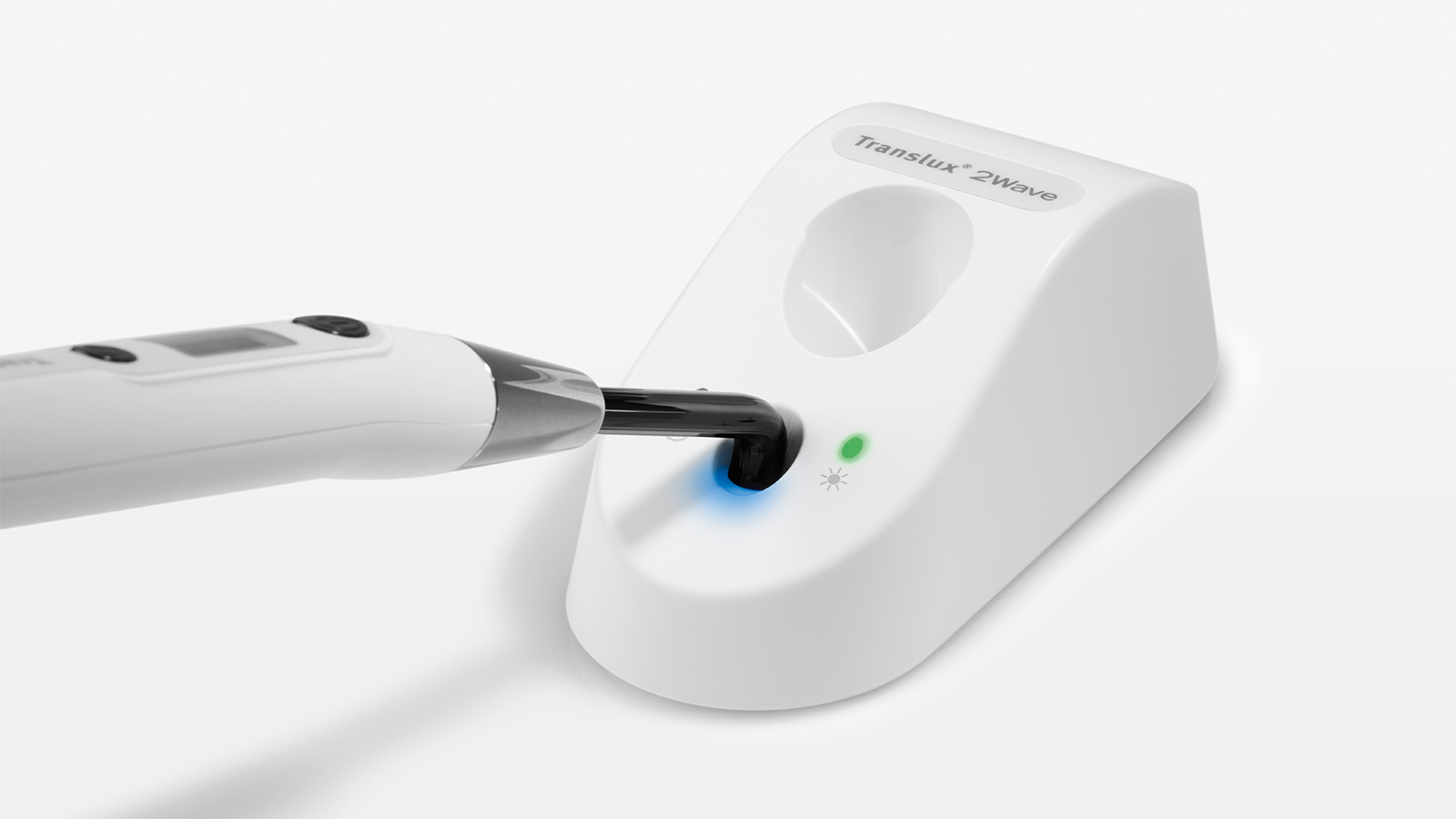

The Translux 2Wave comes with a strong battery, lasting for approximately 200 curing cycles of 20 seconds. And the built-in radiometer enables you to check the performance of the curing light.
For your convenience:

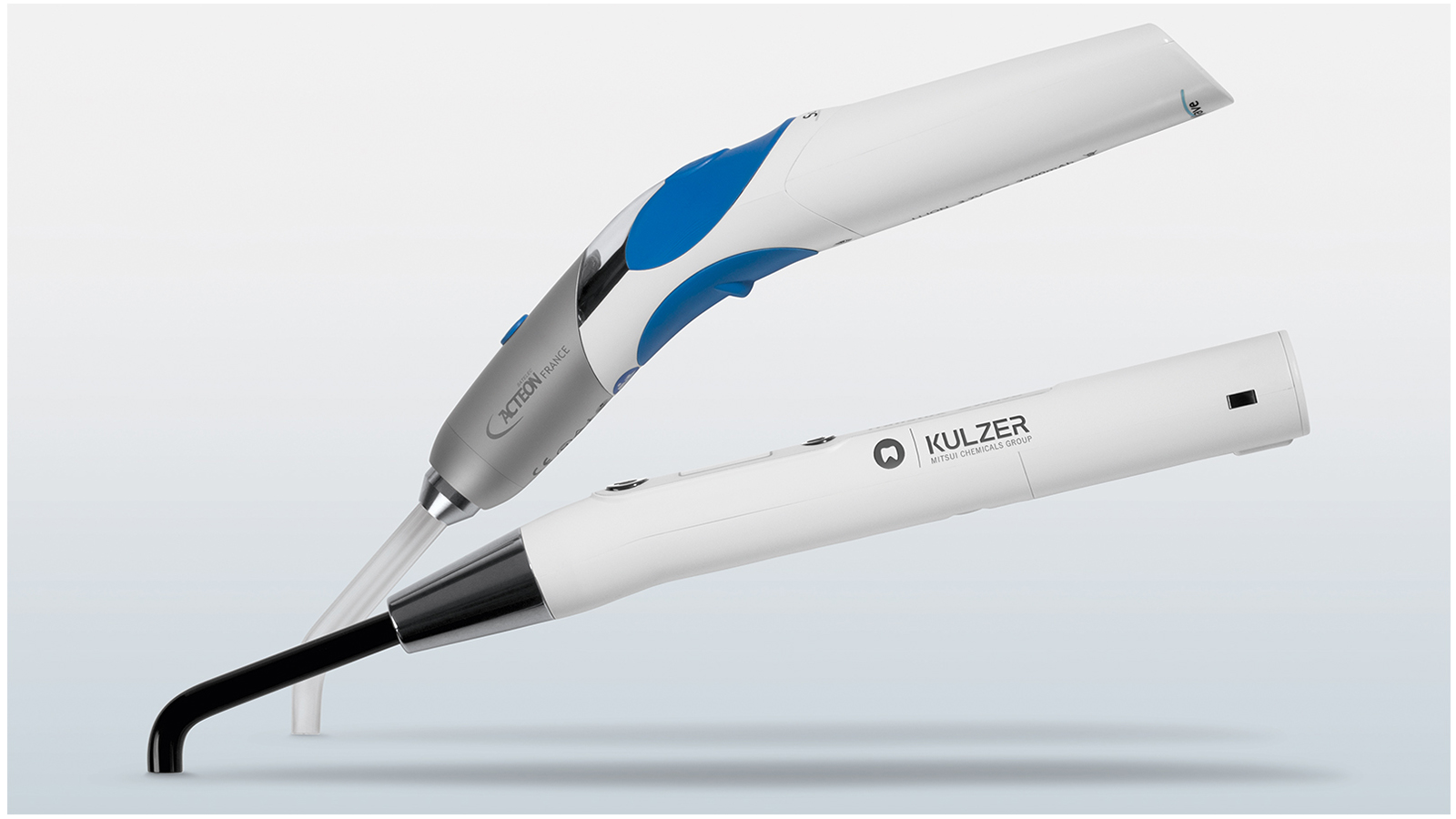

With its shorter and 70° angled fibre light guide, the Translux 2Wave allows easy access to molars even for patients with limited mouth-opening abilities.
For your safety:

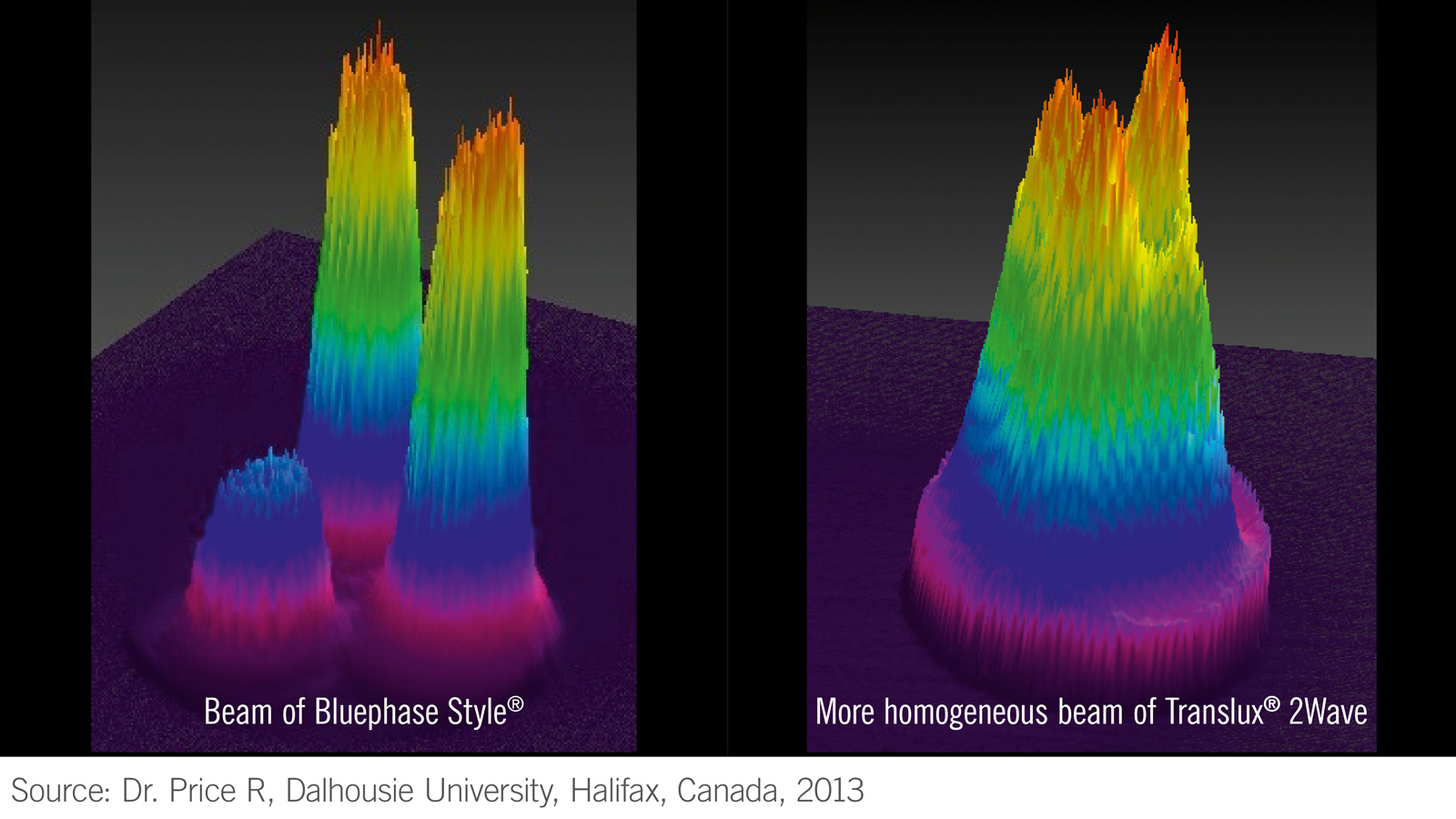

The Translux 2Wave has a 360° rotatable light beam. The broad range of wavelength cures all common light-curing composites and adhesives. Its high power density and homogeneous light beam enables a save restoration.
For your efficiency:

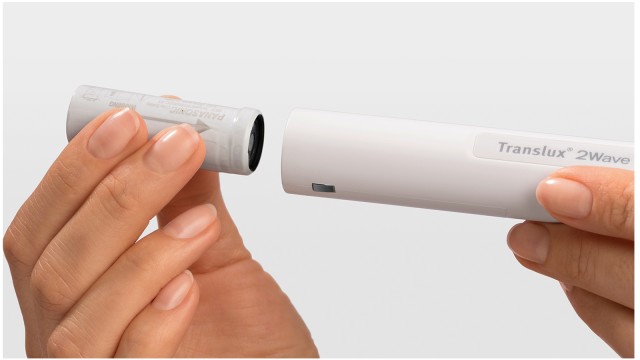

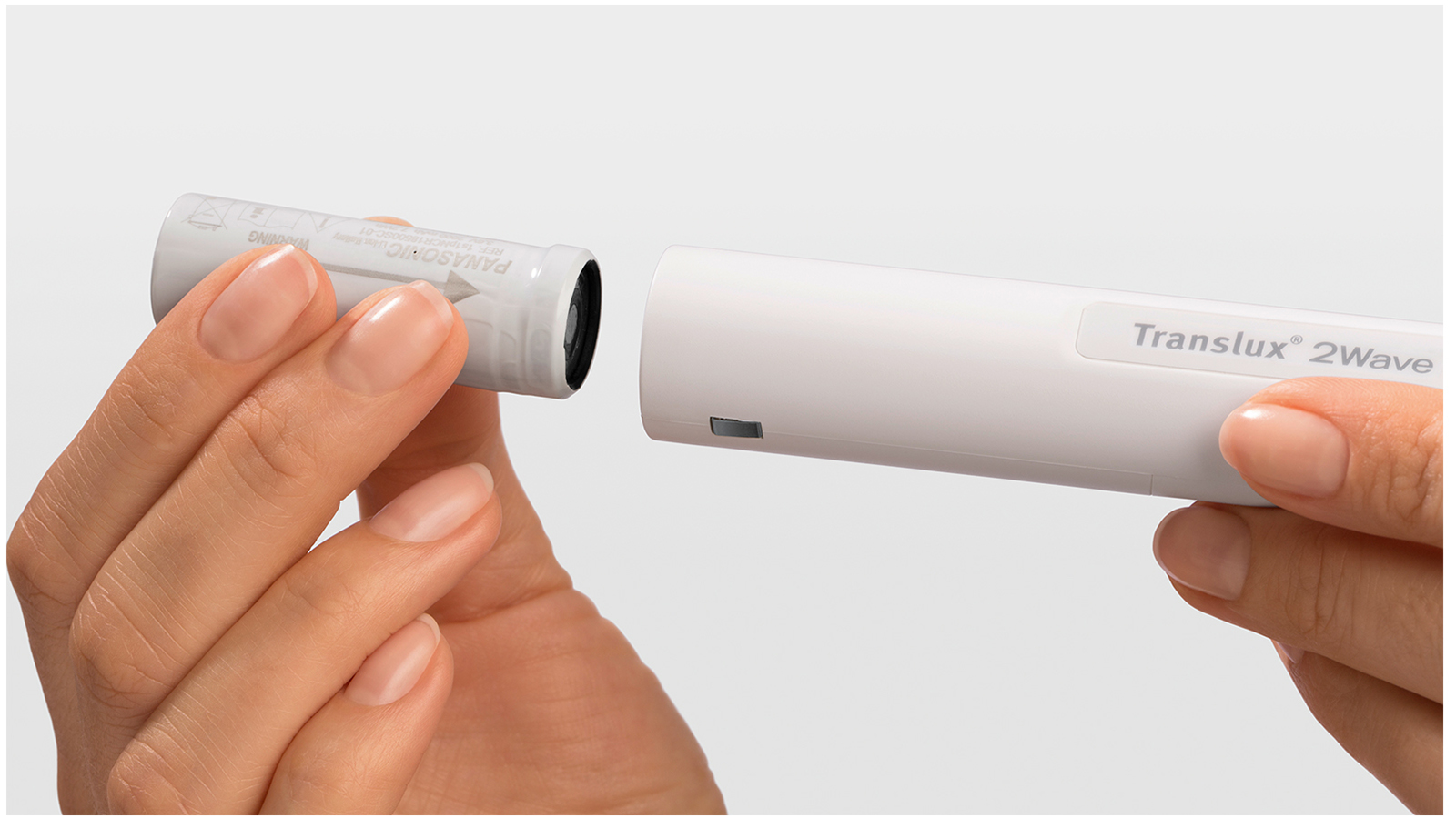

The battery of the handpiece and the contacts of the charging unit can be easily replaced by yourself. That will save time and the service technician.
For your convenience:

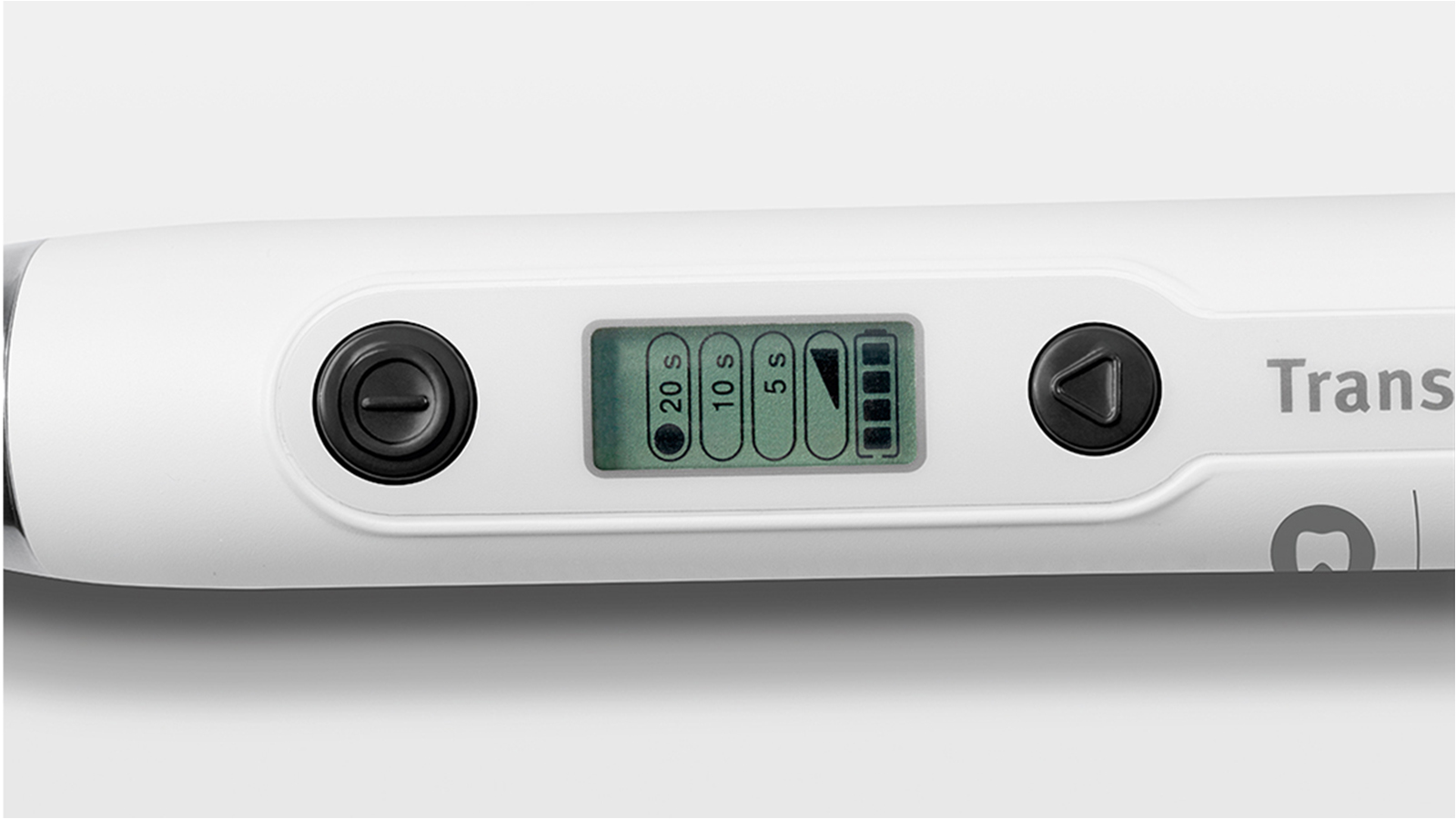

The handling is easy and intuitive. You can choose between different programs of 5 seconds, 10 seconds, 20 seconds and the 20-seconds soft start, all 4 programs loop-selected with an extra button. The LCD display tells you everything you need to know with simple controls.
Specifications
| Technical data Translux 2Wave | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power Density | > 1,400 mW/cm² (Cure Rite) | |||||||||||||
| Wavelength | 385 – 510 nm (broad) | |||||||||||||
| Dimensions charging unit | L140 x W60 x H60 mm | |||||||||||||
| Dimensions hand piece | L210 mm, ø 23 mm | |||||||||||||
| Weight | Charging unit 440 g, Hand piece: 150 g | |||||||||||||
| Power Supply (charging unit) | 100 to 240 V(AC), 50/60 Hz, 12 – 18 VA | |||||||||||||
| Power Supply (hand piece) | Rechargeable Lithium-ion battery 3.6 V/2000 mAh | |||||||||||||
| Light Source | High-luminosity quad-die LED | |||||||||||||
| Light guide | ø 8 mm, 70° | |||||||||||||

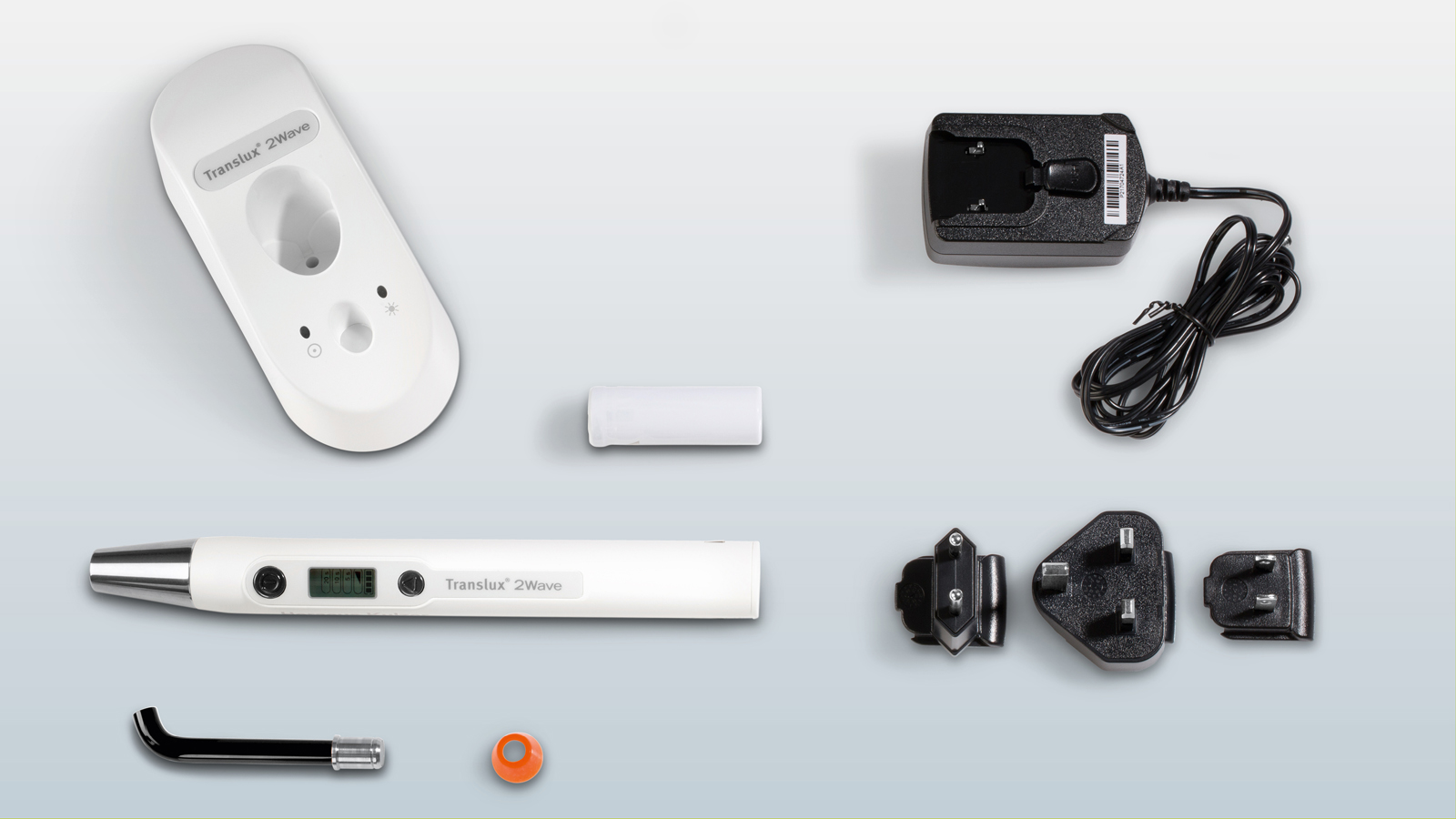

Scope of Translux 2Wave supply
- Charger
- Handpiece
- Light guide, Ø = 8 mm
- Glare shield cone
- Lithium ion battery
- Universal input power supply (100 V – 240 V) including international mains socket adaptors: EU, US/JP, UK
Order information
| Product | Art-No. | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Translux 2Wave Hand piece, 8 mm light guide, glare shield, charging unit, power supply |
66055013 | |||||||||||||
| Accessoires | Art-No. | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Light guide, 8 mm, 70° |
66057365 | |||||||||||||
| Rechargeable battery | 66057363 | |||||||||||||
| Glare shield, orange | 66016455 | |||||||||||||
| Replacement contacts for charger | 66057366 | |||||||||||||
| Hand Piece incl. battery | 66057371 | |||||||||||||
| Charging unit white | 66057372 | |||||||||||||
| Power supply | 66057468 | |||||||||||||
