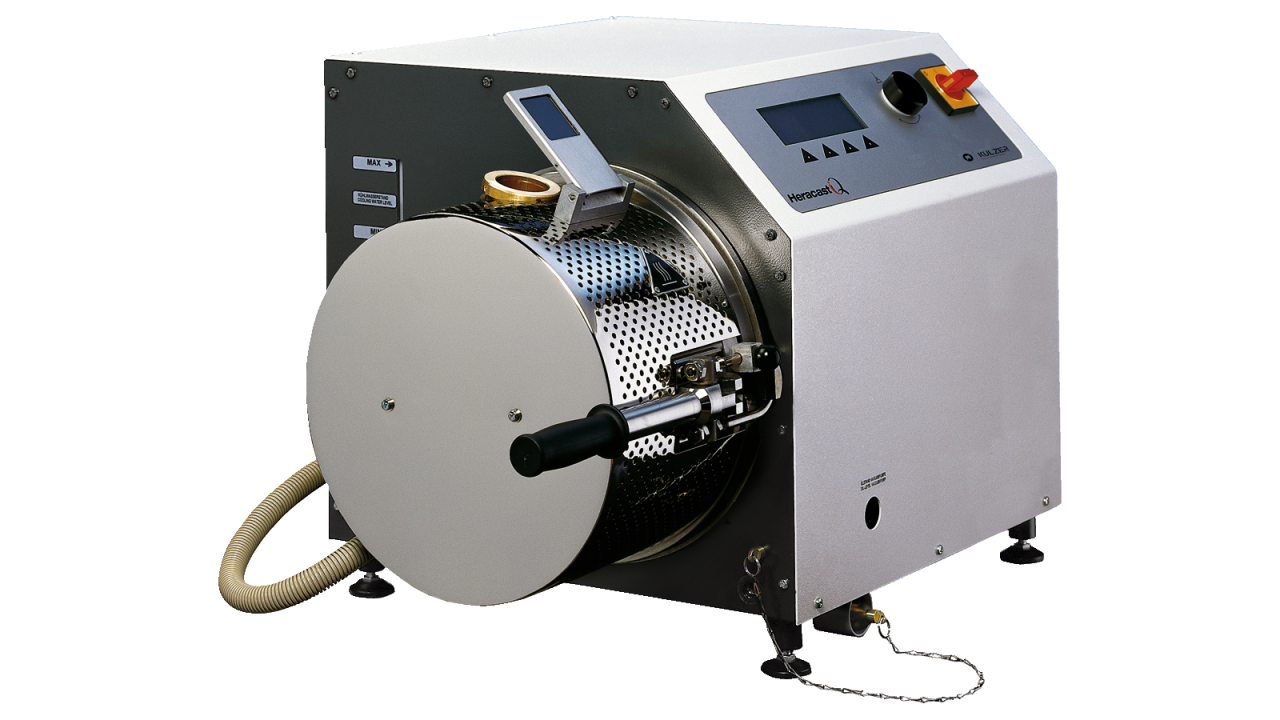

Heracast® iQ
Heracast® iQ

Heracast® iQ

Intelligent vacuum-pressure casting machine

Benefits

Specifications

Technical Specifications:
Rated voltage: 230 V (± 10 %); 50/60 Hz
Melting type: Induction
Power rating: 2.0 kVA for generator
2.6 kVA for the complete unit
Casting temperature: > 1750°C
Alloys: Precious metal; non-precious metal; model casting
Volume of alloy (precious metal): 130 g
Volume of alloy (non-precious metal): 60 g
Casting sequence: 3 – 5 min
Operating mode: 100 % duty cycle
Dimensions (W x D x H): 770 x 450 x 550 mm (incl. connections)
Floor space required (W x D x H): 1000 x 500 x 600 mm
Weight: 65 kg
Languages: DE, GB, F, I, E
Interface: yes, RS 232
(serial PC port for service only)
Input pressure: 4 – 7 bar
Working pressure: 3.3 bar
Pressure sensor: digital
Pressure safety valve: yes
Max. vacuum: < 50 mbar
Vacuum adjustment: digital via software
Vacuum pump: integrated
Water cooling: integrated ~2.5 litres
