cara® Print 4.0 pro
cara® Print 4.0 pro

cara® Print 4.0 pro

The smooth standard of precision and efficiency

Smooth Technology

New technology for smoother surfaces and no visible layers

SMOOTH TECHNOLOGY

Higher productivity

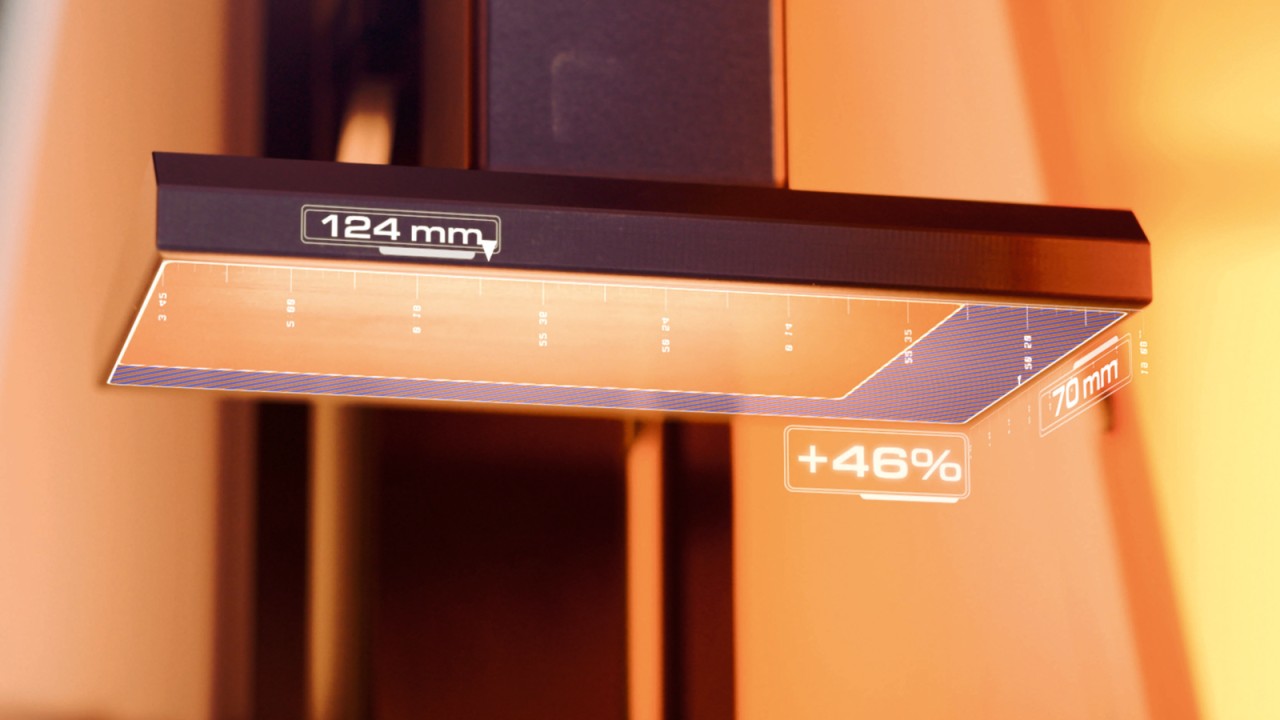

46% larger building area than its predecessor (124 x 70 mm)

Download brochure
Higher productivity

Benefits

Good to know

Indications & Materials

  • Models

    dima Print Stone beige

    dima Print Stone beige - Situation, Section, Ortho and Implant models

    Gypsum-beige, all-rounder resin mimics traditional properties for situation, section, ortho and implant models. High precision & heat resistance with a matte finish and an aesthetic color for nearly any application from veneering to deep drawing.

  • Ortho models

    dima Print Stone teal

    Teal orthodontic models with dima Print Stone teal

    3D resin for teal orthodontic models that are easy on the eyes and offer a strong contrast to metal wires. High surface hardness, extra high heat resistance (ideal for deep drawing!), extra high printing speed and easy to grind if needed.

  • Gingiva masks

    dima Print Gingiva Mask

    Flexible gingiva masks for models with dima Print Gingiva Mask

    Silicon-free 3D resin that makes it easy to design highly detailed gingiva masks with clearly visible contours, emergence profiles and a naturalistic color. The elastic material is highly tear resistant, flexible, and easy to adjust via grinding.

  • Splints

    dima Print Splint clear

    dima Print Splint clear - resin for splint, nightguard, bite

    dima Print Splint clear for 3D printing clear, transparent splints and nightguards, featuring: high accuracy, high elongation at break, and high wearing comfort for the end user. Save splints as digital files and reprint as needed. (MD class IIa)

  • Splints

    dima Print Ortho

    dima Print Ortho - 3D resin for splint, bite

    dima Print Ortho for 3D printing transparent blue splints. The splints deliver high accuracy, high flexural strength and you can save the splints as digital files to reprint as needed. (MD class IIa)

  • CAD-to-Cast

    dima Print Cast ruby

    Crowns, bridges, partial dentures, press ceramics with dima Print Cast ruby

    Universal, ruby-red 3D resin that is comparable to milled cast material (PMMA): very fluid with no sedimentation, residue-free burnout. Create flexible clasps, highly precise and clean crown edges and smooth metal/cast surfaces.

  • Impression tray

    dima Print Impression blue

    dima Print Impression blue - 3D resin for patient-specific impression trays

    Print individualized impression trays in a flash. dima Print Impression blue features high layer thickness and very rapid printing. (MD class I)

  • Surgical guide

    dima Print Guide

    dima Print Guide - 3D resin for surgical dental drilling guides

    High precision, high stiffness. Surgical drilling guides with a special feature: the 3D printed guides change from orange to a light, transparent orange when they are sterilized to ensure patient safety. (MD class I)

  • Crown&Bridge

    3D PRINTING MATERIAL

    dima® Print C&B temp

    When it comes to temporaries and provisionals, 3D printing saves a significant amount of time and costs when compared to milling. But not only that: it frees up dental mills for higher value jobs that are not possible on a 3D printer (e.g. zirconia).

  • Digital Denture

    3D PRINTING MATERIAL

    dima® Print Digital Denture

    dima Print Digital Denture helps you create duplicate dentures in a fast, easy process and serve a new market for back-up dentures.

  • Mouth Guard

    3D PRINTING MATERIAL

    dima® Print Mouth Guard

    With your 3D printer from Kulzer, you can easily cater to a local niche market and expand your portfolio with mouth guards that are easy to produce and even easier to re-produce as needed.

  • Stone gray

    3D PRINTING MATERIAL

    Developed to match the look and handling properties of gray gypsum for the production of models. The material is an excellent choice for technicians with the highest aesthetic demands, such as ceramists.

Applications

  • Clean pro

    3D-printing cleaning system

    CARA PRINT CLEAN PRO

    cara Print Clean pro is an automated 3DP cleaning system that agitates isopropanol in a contained volume to clean excess, uncured resin from 3D-printed parts.

  • Print LEDcure

    CARA PRINT SYSTEM

    cara print led cure

    A 3D printing process that improves the efficiency and profitability of dental labs. It ranges from indication-specific resins and a 3D printer, to hands-free part washing and light-curing.

  • cara Print CAM

    Nesting software

    cara Print CAM 2.0

    Perfectly integrated into Kulzer’s 3D printing workflow, cara CAM 2.0 helps you get the most out of your valuable working time by minimizing the time needed to prepare your CAD files for printing.

  • cara i700

    Intraoral scanning

    cara i700

    The next generation of intraoral scanners has landed: cara i700 comes with a multitude of innovative features that take your scanning experience to a whole new level.

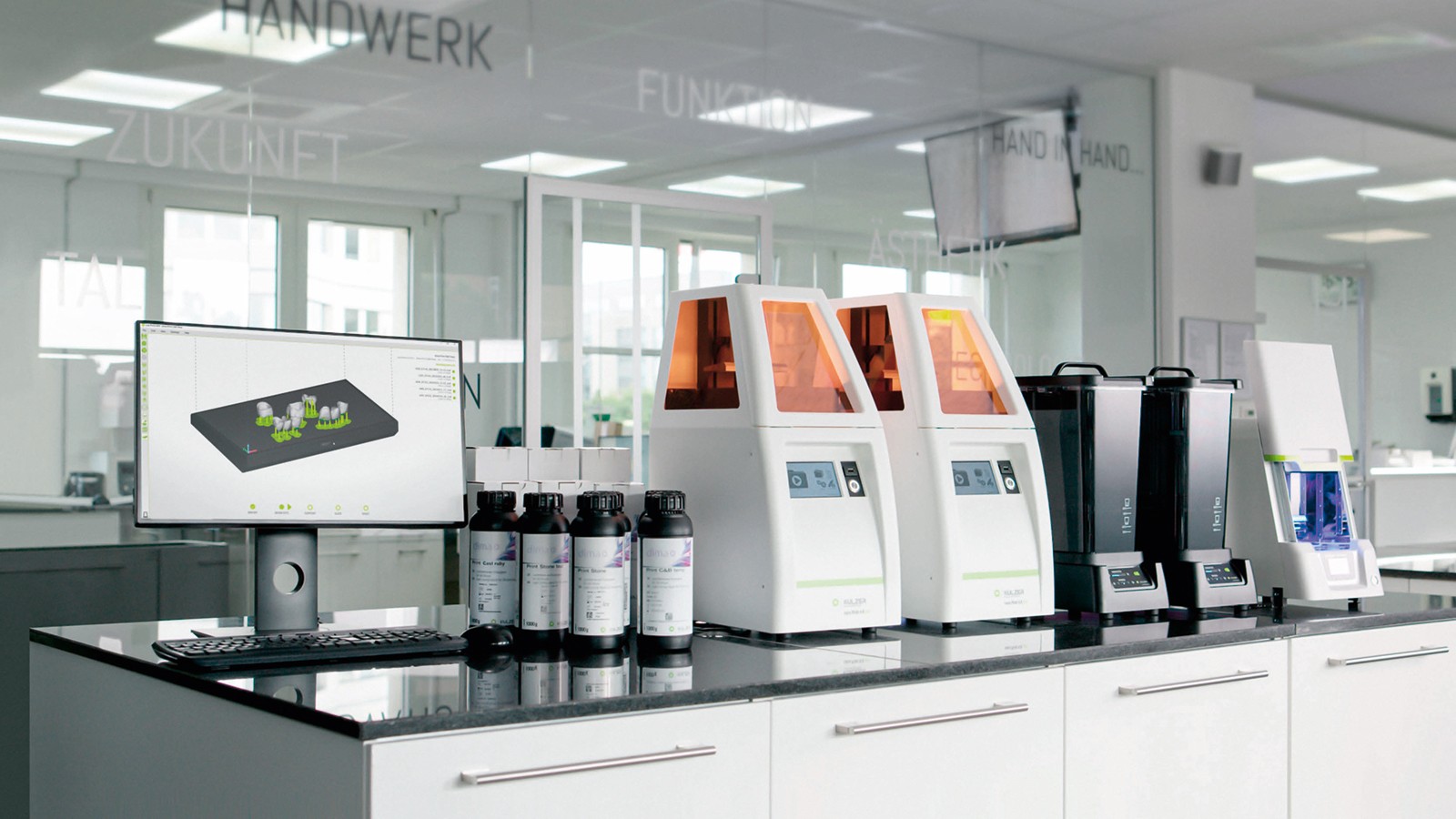

3DP pro Solution

Part of the validated 3D-Printing pro Solution workflow

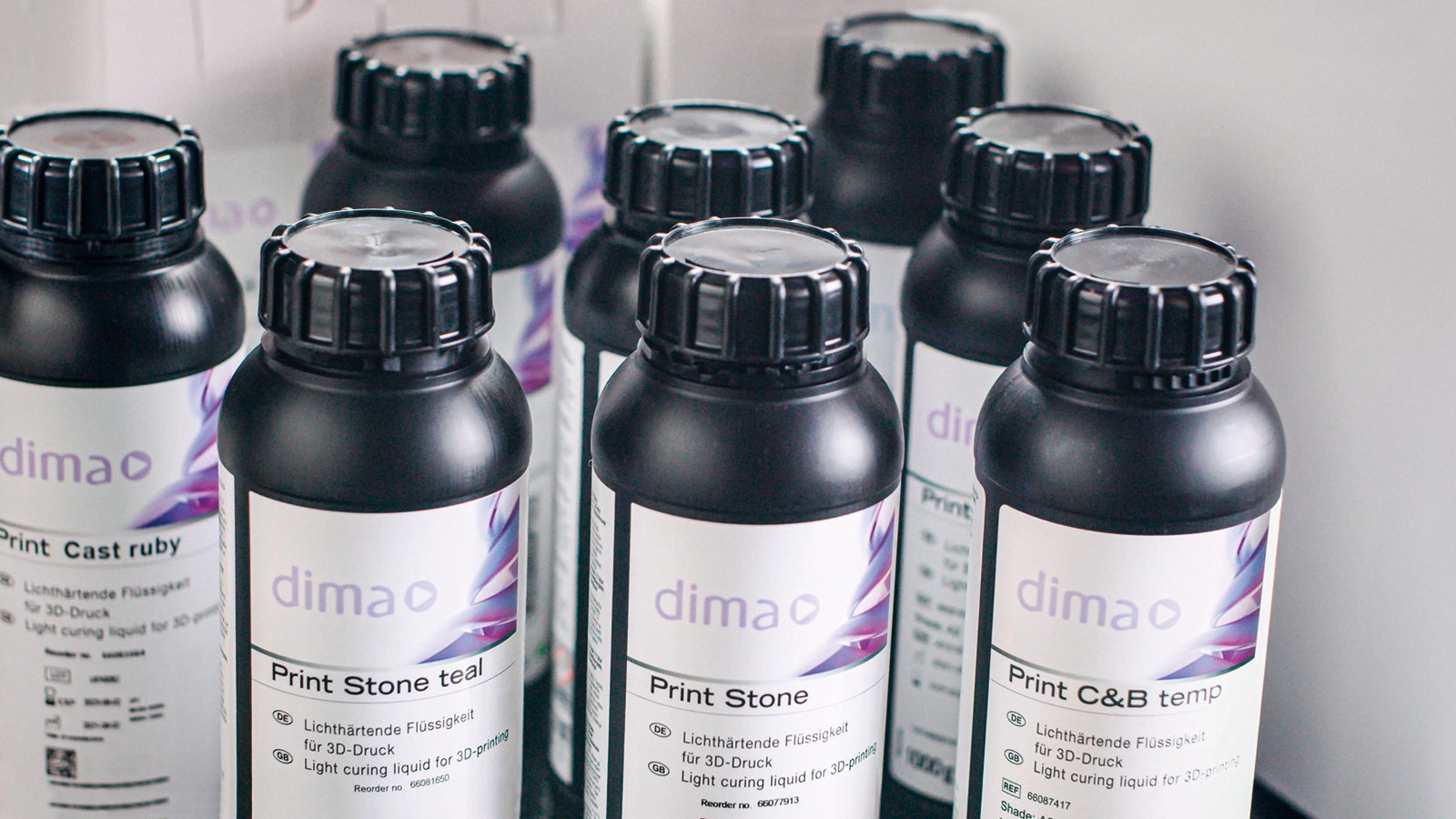

dima Print materials

Broad and expanding range of indications

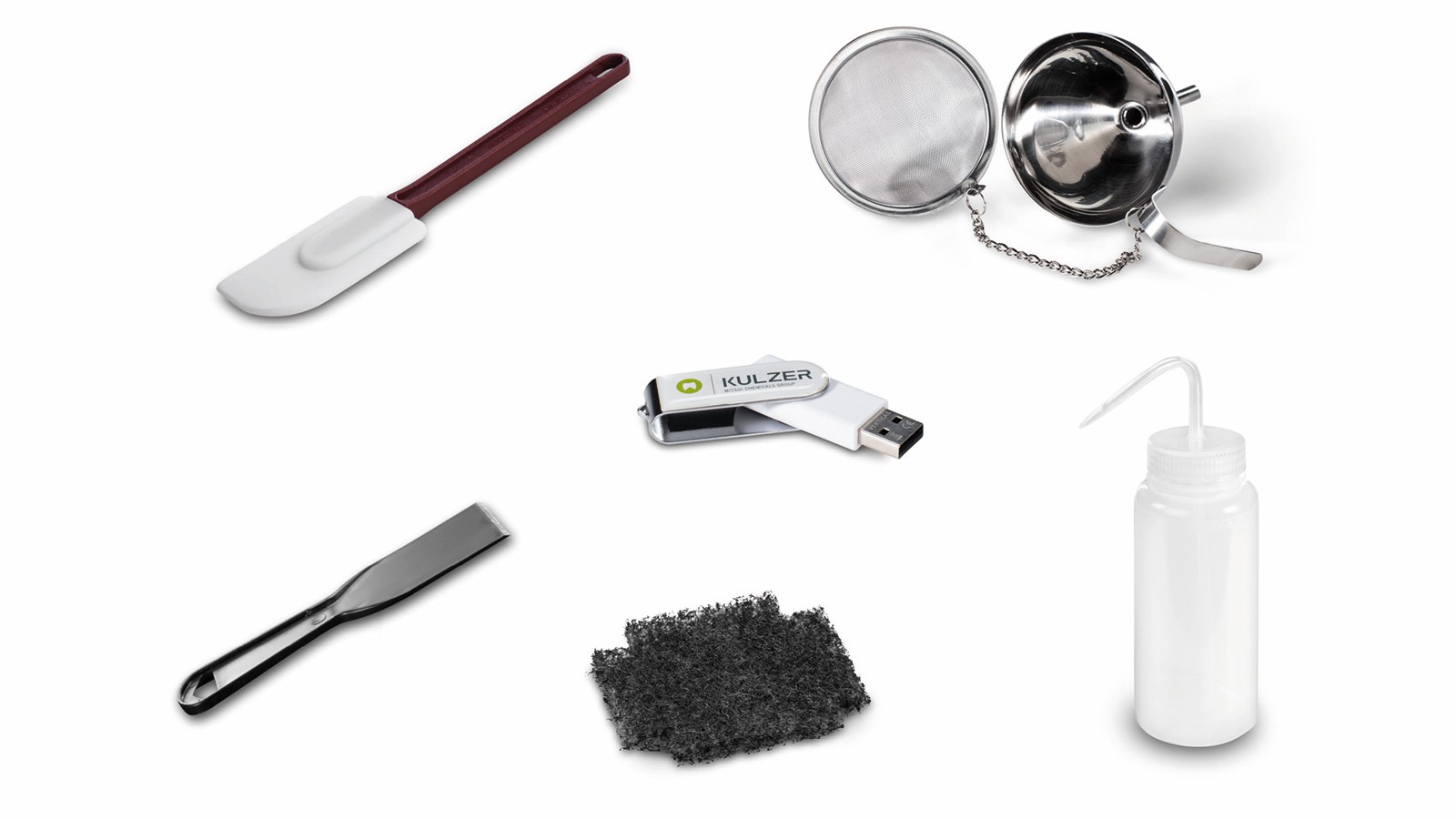

cara Print 4.0 pro accessory kit

cara Print 4.0 pro accessory kit (included)

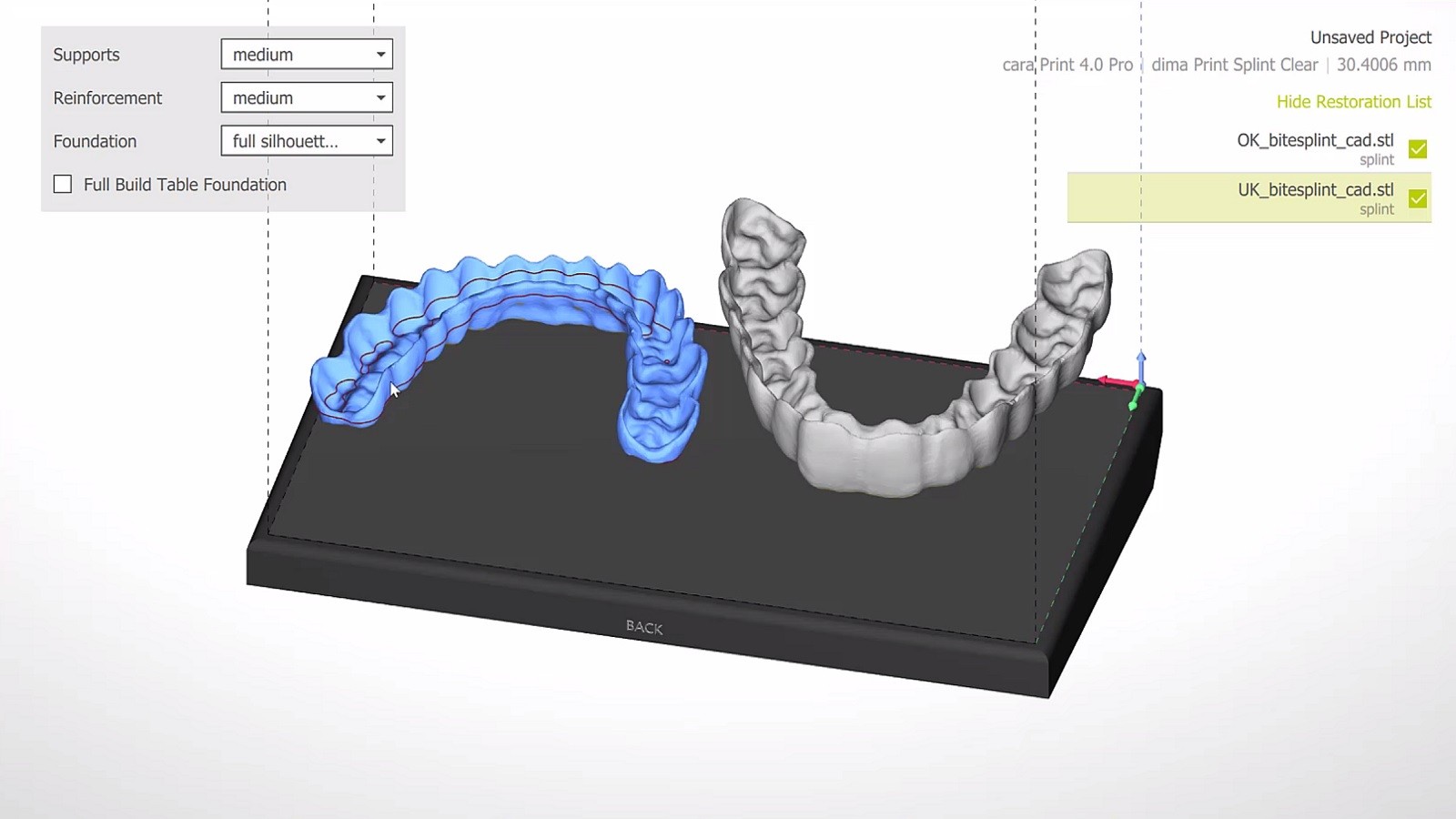

cara Print CAM 2.0 software

cara Print CAM 2.0 software (included)

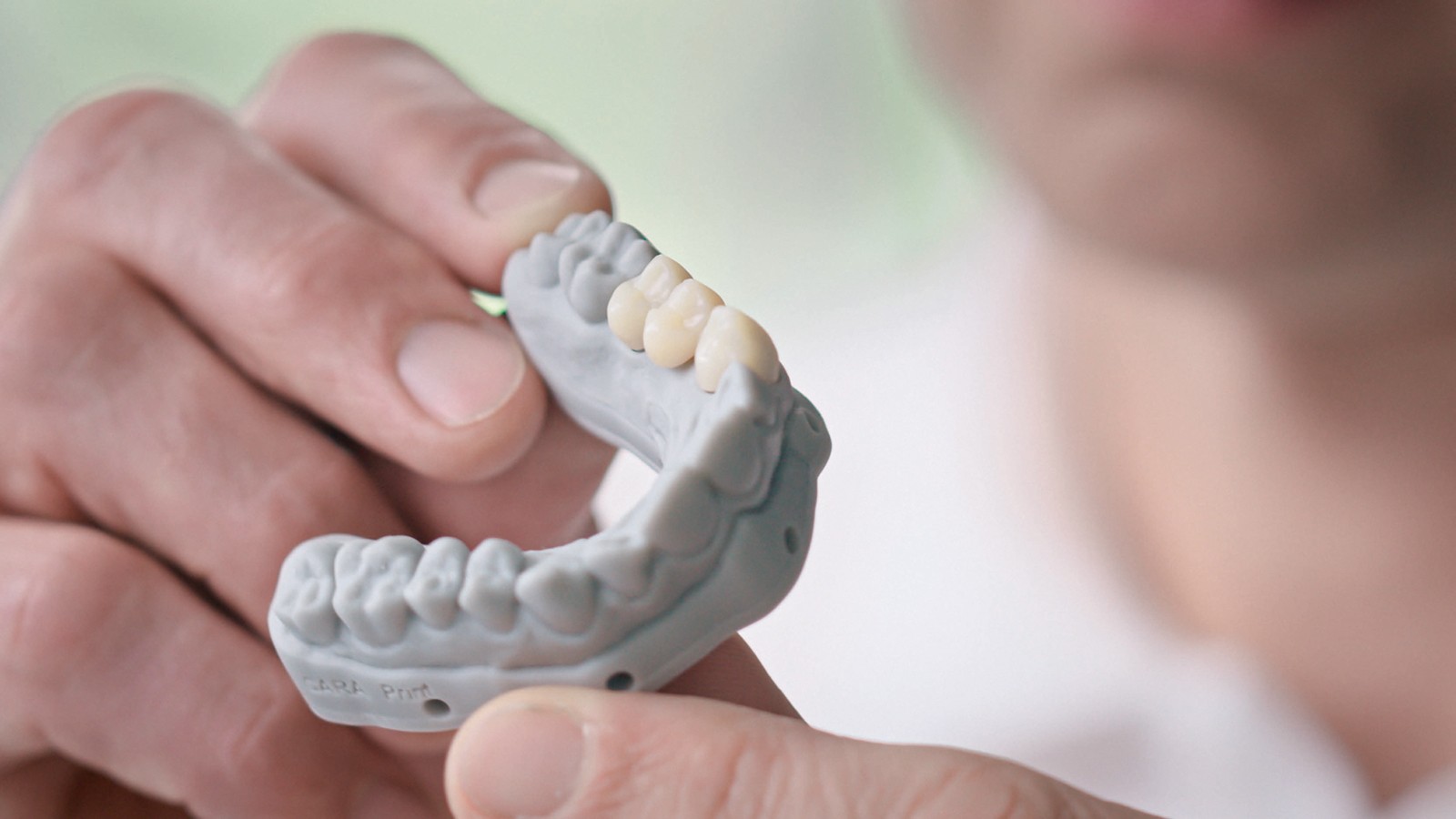

3D printed model & bridge

3D printed model & bridge (dima Print Stone gray & dima Print C&B temp)

Specifications

Technical details
3D Printing Technology DLP Structured Light
Electrical Safety Class II, Type B; Protective Class IP20
Light source Industrial LED, the peak wavelength of either 385 or 405 nm Light
Build Table Actuation + and - Vertical
3D printing area (W x D x H) 124 x 70 x 130 mm / 4.88 x 2.75 x 5.12 inch
Accuracy Z-axis Material Dependent
Input data format .stl
Output data format .cpj
Interface USB 2.0, Wi-Fi, Ethernet
Size (W x D x H) 270 x 420 x 640 mm (10.7” x 16.5” x 25.25”)
Weight 21 kg (50 lbs.)
Mains Input 100–240 VAC, 50/60 Hz, 7,5 A MAX
Power Supplies GlobTek GTM43004P9016-4.0-T3
Rated power of Printer 12VDC, 7.5A
Required table area (W x D) 750 x 750 mm (30” x 30”)
Package size (W x D x H) 405 x 560 x 710 mm (16” x 22” x 28”)
Package weight 26 kg / 57 lbs

Downloads

Instructions for use

Handling Information

Product Information

Setting Parameters

User Manual
