Translux® Wave
Translux® Wave

Translux® Wave

Safe and effective polymerisation.

Benefits

Good to know

Applications

Technical Specifications

Technical data Translux Wave
Power Density > 1,200 mW/cm² (Cure Rite)
Wavelength 440 – 480 nm (narrow)
Dimensions charging unit L140 x W60 x H60 mm
Dimensions hand piece L210 mm, max. ø 23 mm
Weight Charging unit 437 g, Hand piece: 145 g
Power Supply (charging unit) 100 to 240 V(AC), 50/60 Hz,
5 W, 12 – 18 VA
Power Supply (hand piece) Rechargeable Lithium-ion battery
3.6 V/2000 mAh
Light Source High-luminosity mono-die LED
Light guide ø 8 mm, 70°

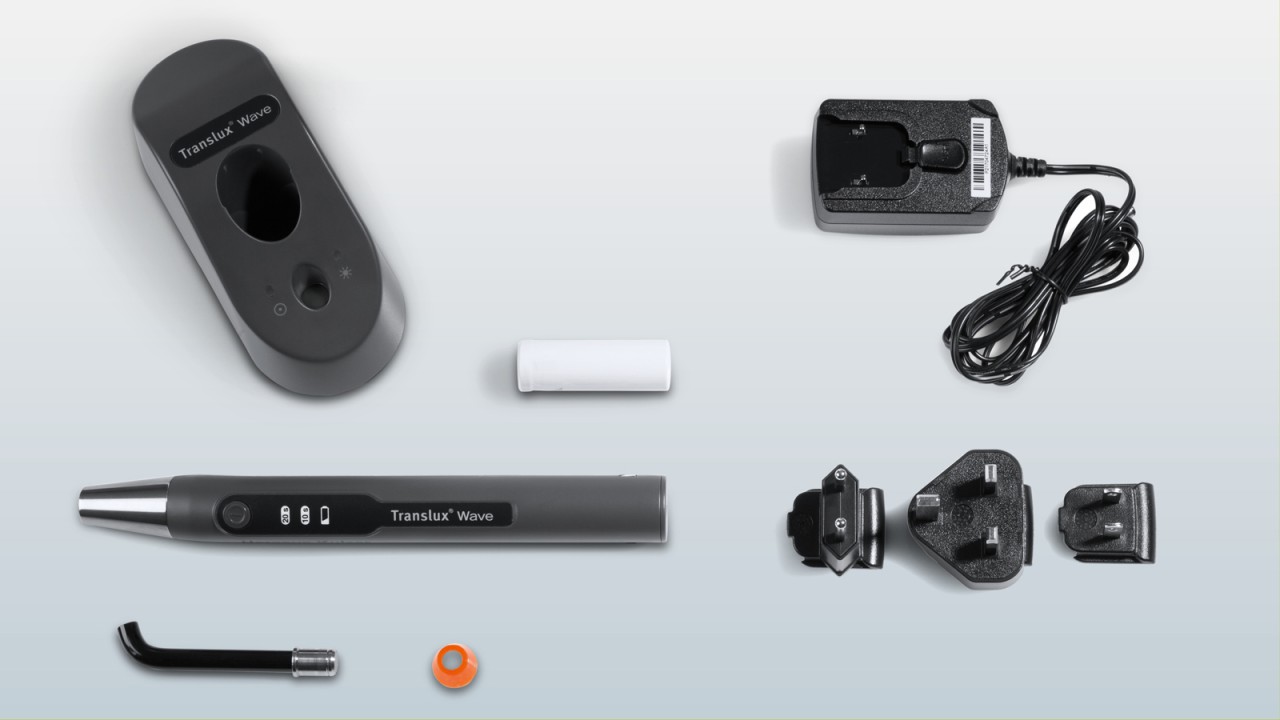

Scope of Translux Wave supply

Order information

Product Art.-No.
Translux Wave
Handpiece, 8 mm light guide,
glare shield, charging unit,
power supply
66055012
Accessoires
Light guide, 8 mm, 70° 66057365

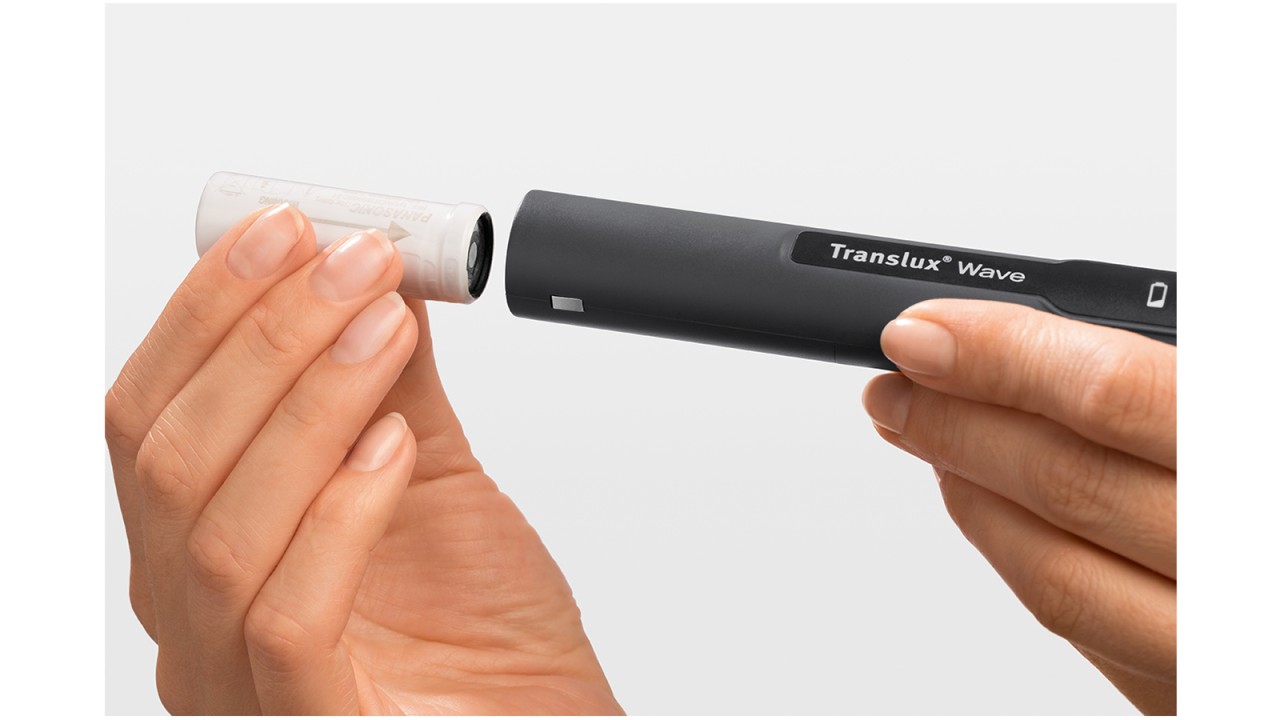

Rechargeable battery 66057363
Glare shield, orange 66016455
Replacement contacts for charger 66057382
Hand Piece incl. battery 66057383
Charging unit grey 66057384
Power supply 66057468

Downloads

Instructions for use
