dima® Print C&B temp
dima® Print C&B temp

dima® Print C&B temp

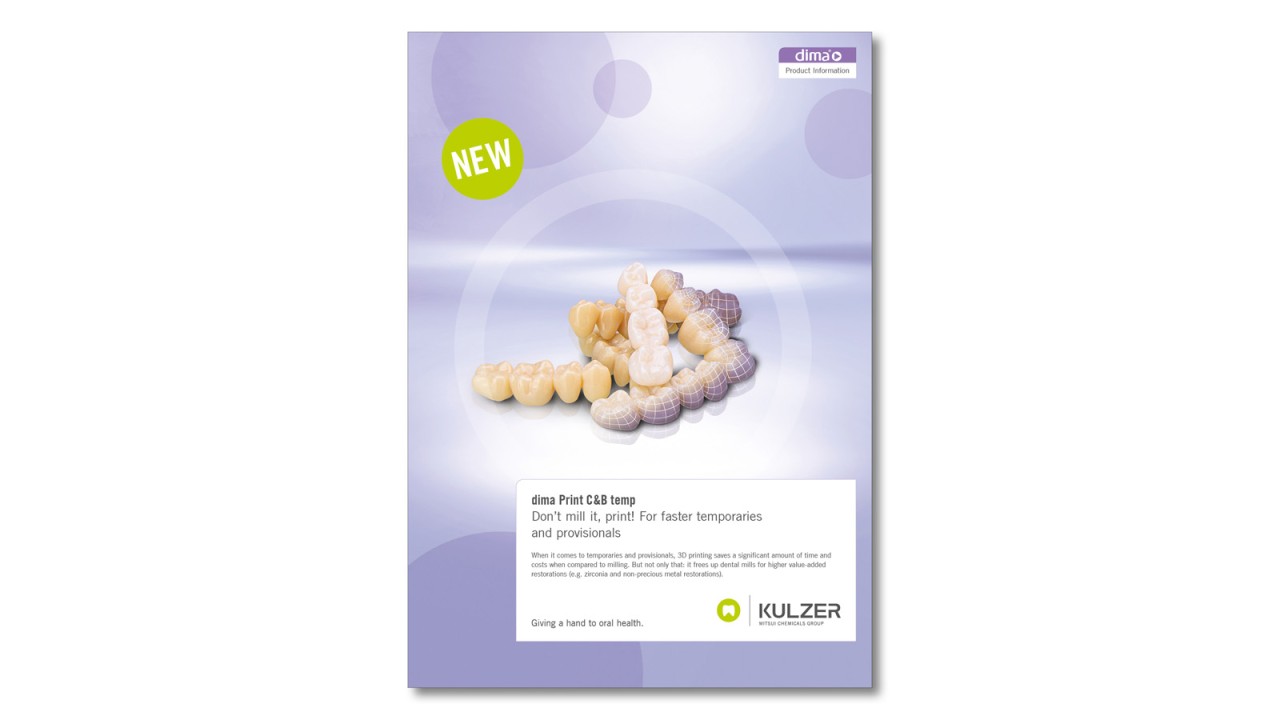

Don’t mill it, print! For faster temporaries and provisionals...

Why dima Print C&B temp?

“…because I can react faster to the wishes of my customers!”

Read interview
Thomas Backscheider about dima print C&B temp

Time saving

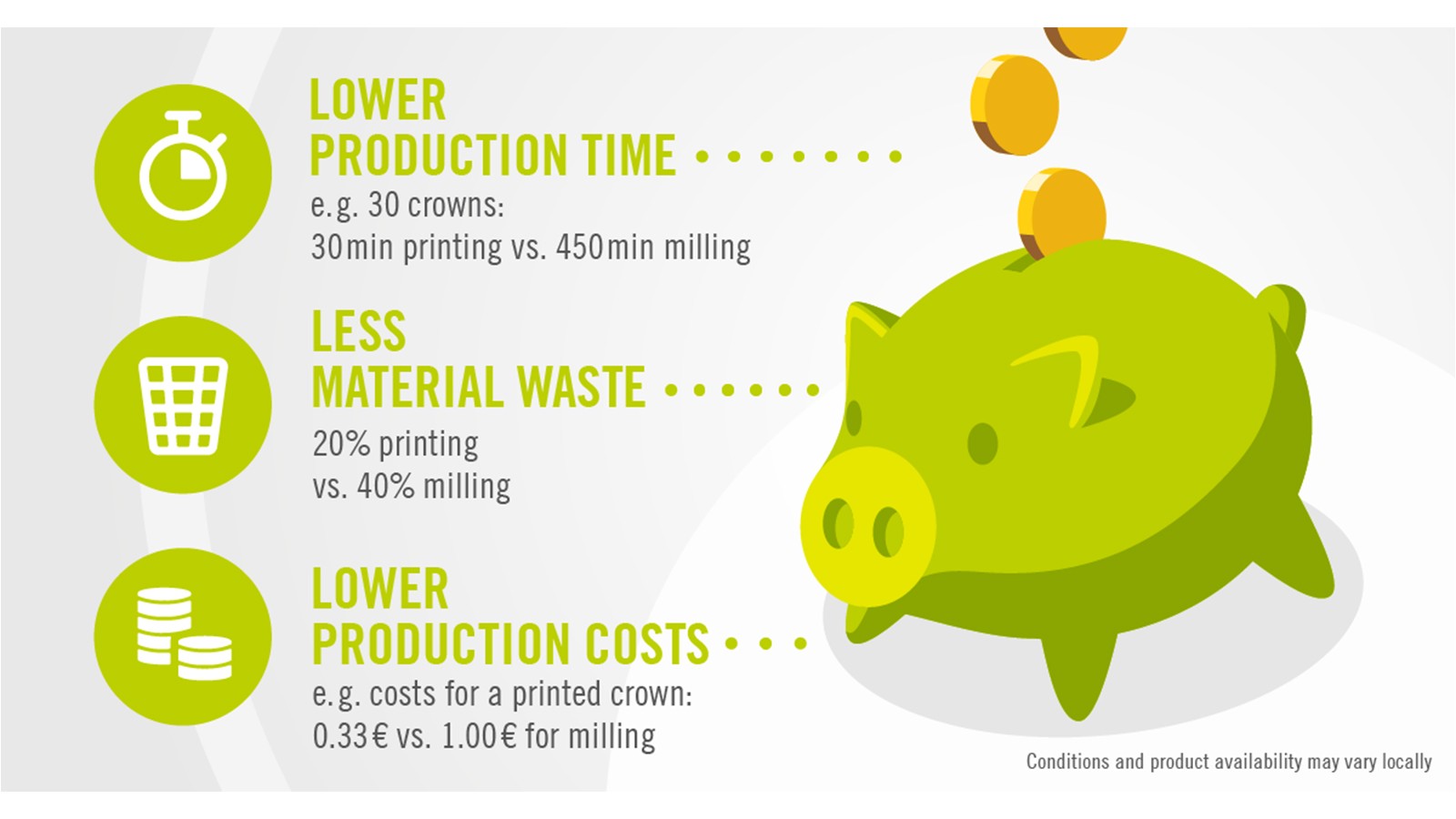

Only 30 minutes to print 30 crowns vs. 450 minutes needed for milling

More info
dima Print C&B temp

Benefits

Good to know

Indications

dima Print C&B temp – A1

dima Print C&B temp – A1

dima Print C&B temp – A2

dima Print C&B temp – A2

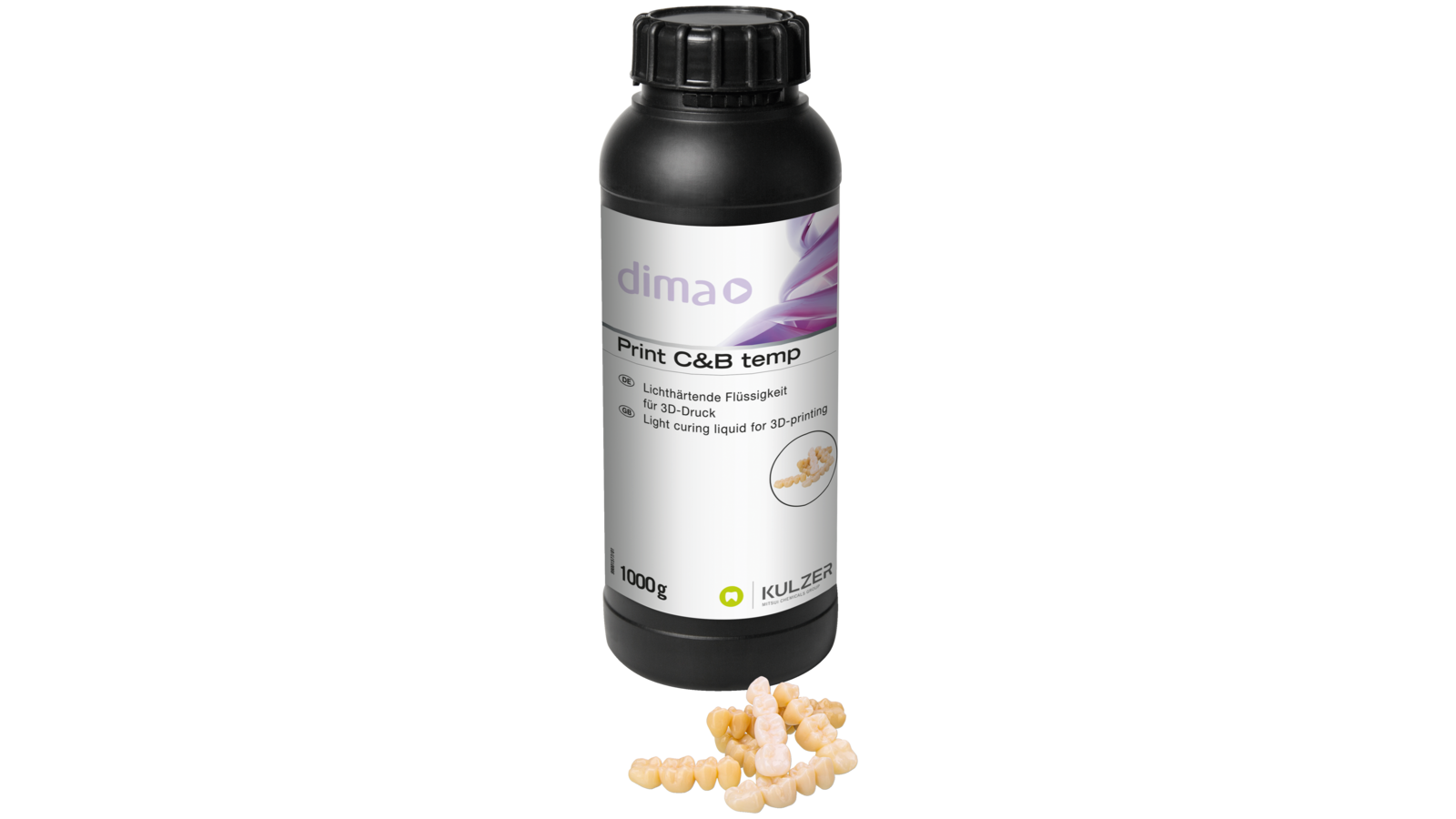

dima Print C&B temp (1000g)

dima Print C&B temp (1000g)

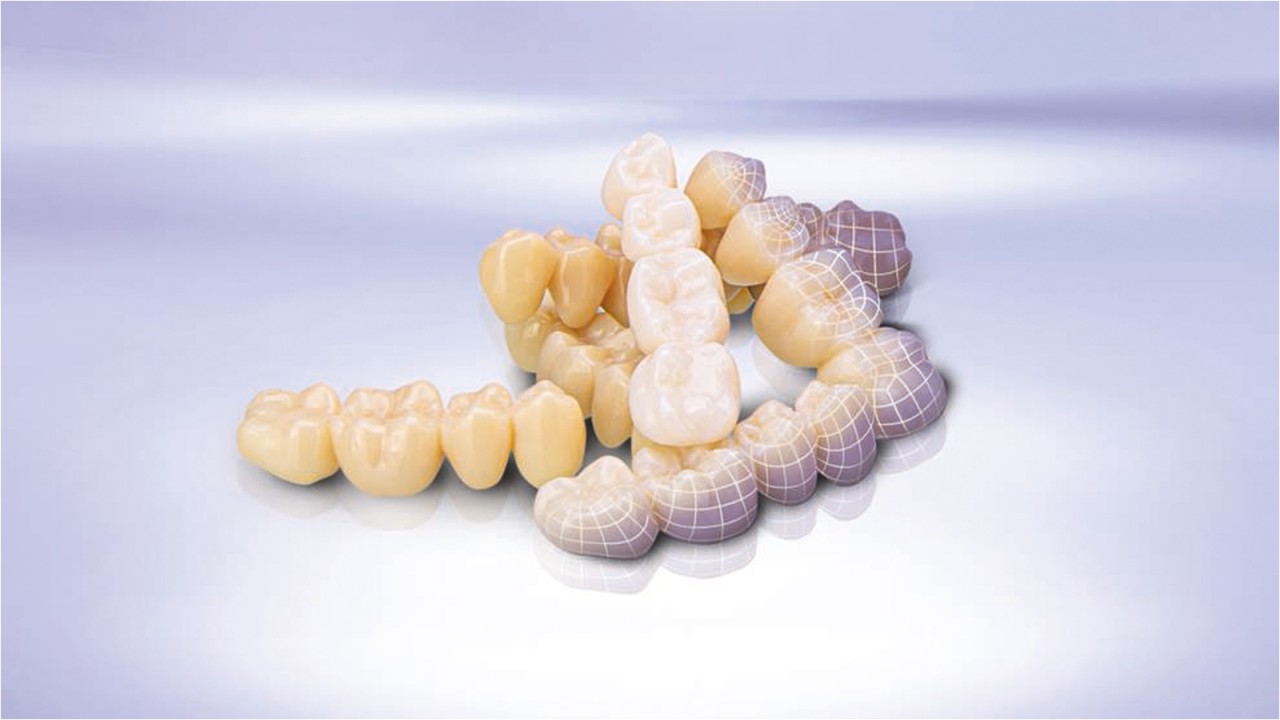

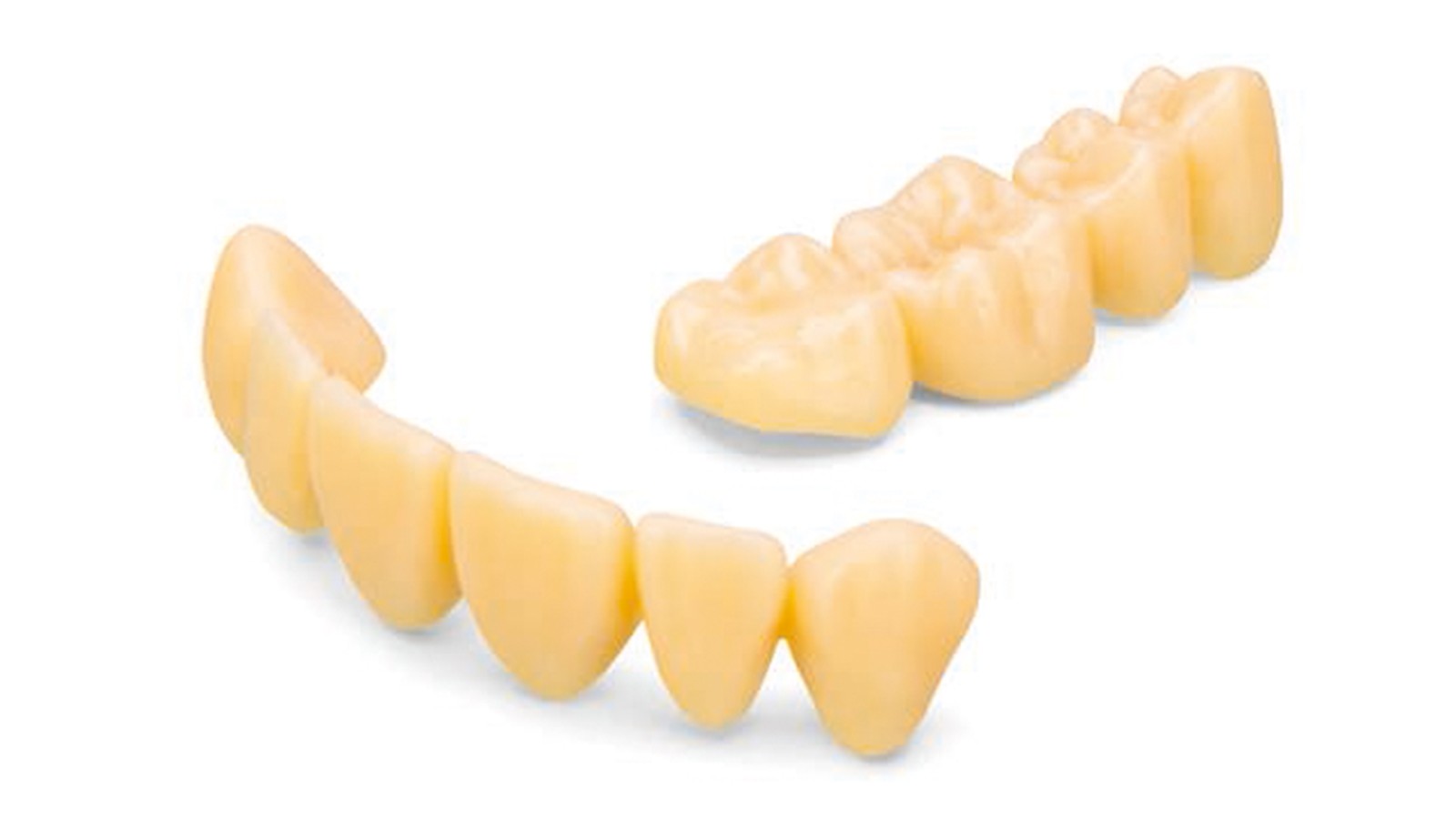

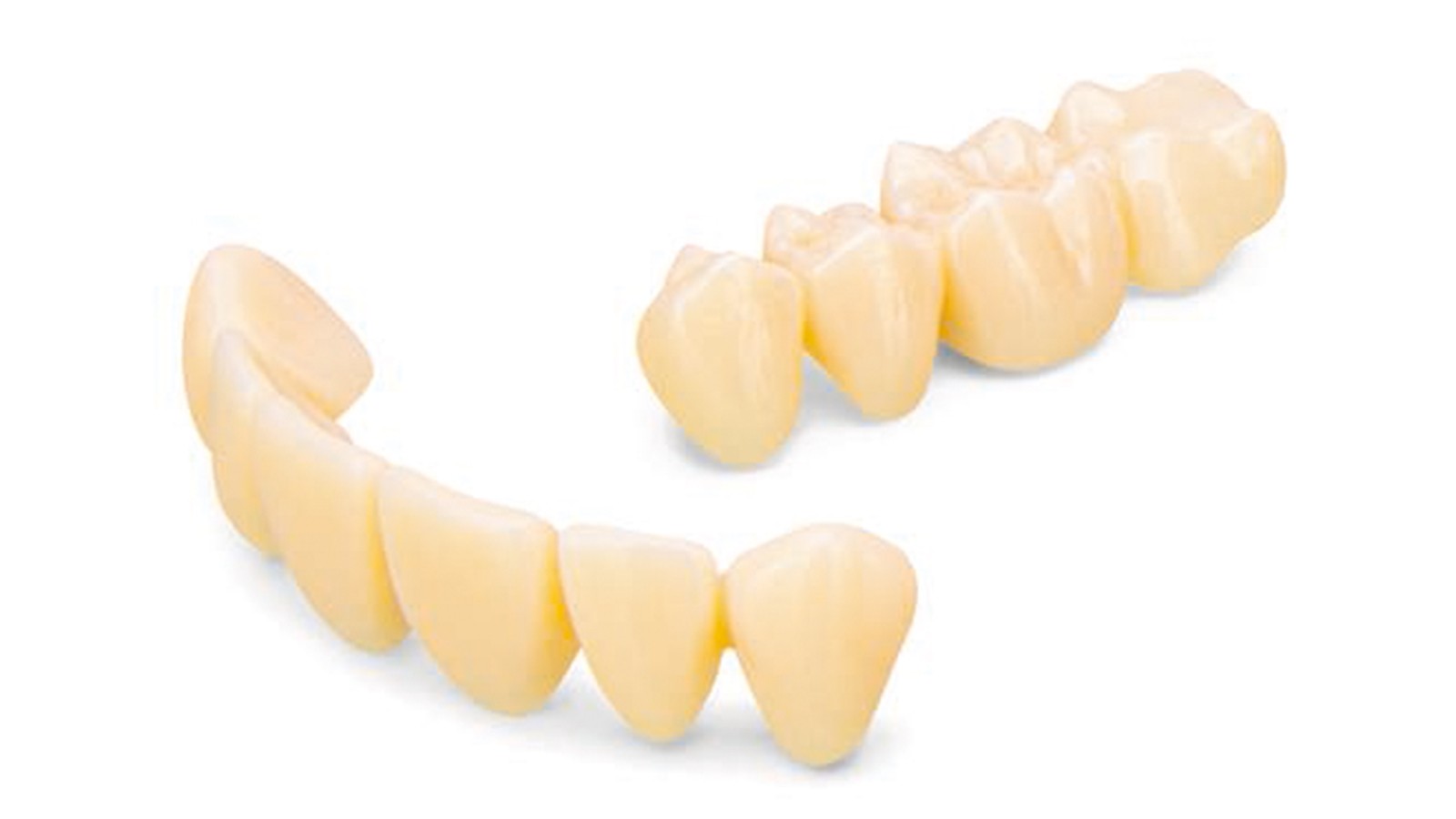

Benefits for 3D printed crowns & bridges

Benefits for 3D printed crowns & bridges

References

Specifications

Printing performance overview
Example Build height [mm] Time [min] for 50 µm resolution Time [min] for 100 µm resolution Material consumption [g] Avg. material costs Avg. material costs/part
One crown 15 27 15 0,82g with supports, uncleaned

(0,64g with supports, cleaned)
0,33€ 0,33€
30 crowns 15 30 20 24,6g (with supports, uncleaned) 9,90€ 0,33€
One bridge [3 units] 17 28 16 2,43g with supports, uncleaned

(2,16g with supports, cleaned)
0,97€ 0,97€
Product overview
Flexural Strength (Mpa) Flexual Modulus (Mpa) Cleaning time
in Isopropanol
(cara Print Clean or
ultra sonic bath)
Post-curing time
(HiLite Power 3D)
Post-Curing time
LEDcure
(no turning of object
necessary)
> 50 > 2000 pre-cleaning:
3 minutes
post-cleaning:
2 minutes
20 minutes
(10 minutes front side
+10 minutes reverse
side) in Glycerin
C&B Temp
program,
cure in Glycerin

Downloads

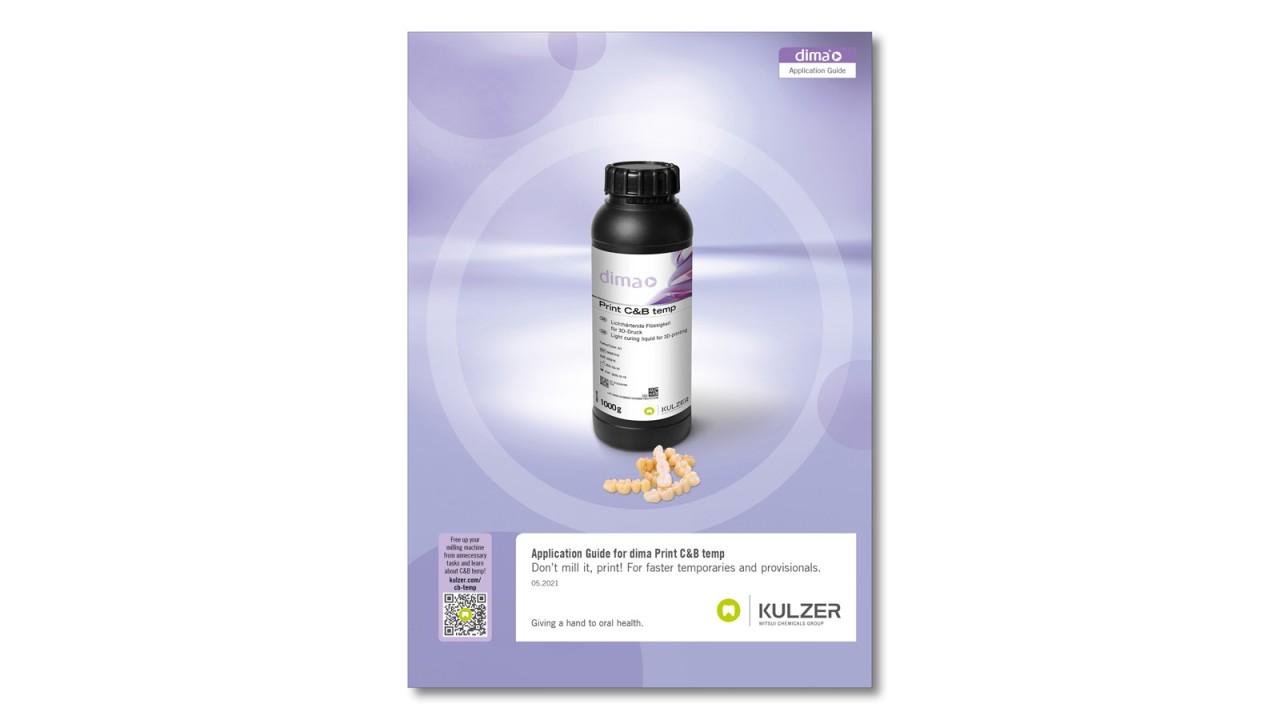

Instructions for use

Contact

  • 3D PRINT MATERIAL

    dima® Print Splint clear

    dima® Print Splint clear

    A 3D printing process that improves the efficiency and profitability of dental labs. It ranges from indication-specific resins and a 3D printer, to hands-free part washing and light-curing.

  • New

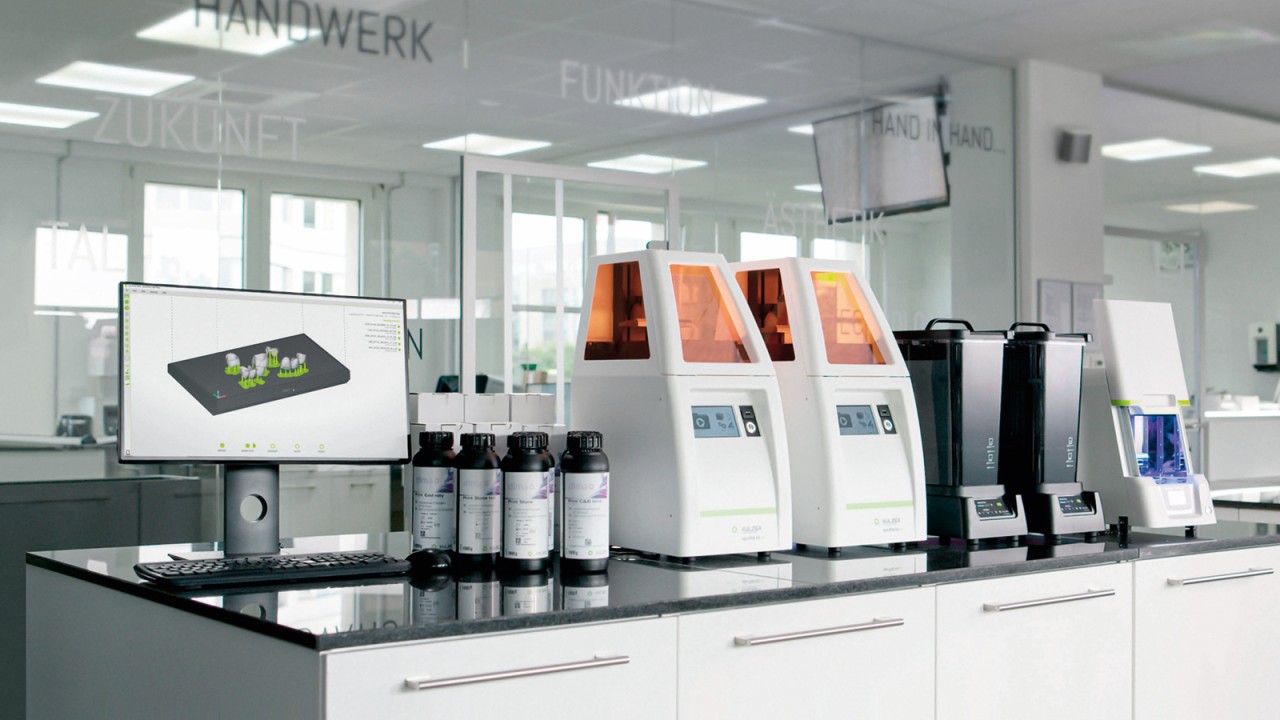

    cara Print System
